HBE-Electronic Circuit

Catalogue

Basic Electronic Circuit Experiment Equipment

  • Supplied 13 kinds experiment modules
  • Protection Circuit for safety
  • Available various experiments using breadboard
  • No need extra equipment because it has built-in Waveform Generator, DMM, Volt & Current Meter and PC based Oscilloscope (Note : PC is required when using an oscilloscope)

Introduction

HBE-Electronic Circuit is designed to help student understand basic electronic circuit easily. Supplied theme modules are designed based on real circuit diagram so student can figure it out simply. More over they can various application experiments using bread board. HBE-Electronic Circuit has probe terminal to measure test result of each module and In order to experiment easy, it also has connection terminals for connecting between each circuit. HBE-Electronic Circuit is built-in Signal Output Device such as DC Power Supply, Waveform Generator for input signal and test equipments such as DMM, Volt Meter, Ampere Meter, Oscilloscope for measuring result. So it is available to make experiment without other testing devices.

Features

  • Supplied 13 kinds experiment modules for basic electronic theme.
  • Easy understanding using same experiment circuit as circuit diagram.
  • Available to check input and output signal using PC.
  • Variable experiment is available using Bread Board.
  • Design to protect from student misuse using power protection circuit.

Configuration and Names

  1. Voltage Meter
  2. Current Meter
  3. AC Power Block
  4. DC Power Block
  5. Switch
  6. Waveform
  7. Power Supply Block
  8. BreadBoard
  9. Variable Resistor
  10. Module Block
  11. Digital Multi Meter
  12. 7-Segment
  13. LED
  14. Sound
  15. Oscilloscope
  16. Power Block
  17. Module Storage
  18. Cable Storage

Experiment List

Training Contents

HBE-Electronic Circuit Operation & Experiment Manual

Chapter 1.  Introduction

  1.  Introduction to HBE-Electronic Circuit
  2. Specification of HBE-Electronic Circuit
  3. Layout
  4. Description of Each Part

Chapter 2. Basic Operation

  1. Basic Operation

Chapter 3. Experiment

  1. Semiconductor Devices & Integrated Circuit
  2. DC Power Circuit
  3. Amplifier Circuit
  4. OP-AMP
  5. Oscillation Circuit
  6. Pulse Circuit
  7. Modulation & Demodulation Circuit
  8. Interface Circuit
  9. Signal Converter Circuit

Block Diagram

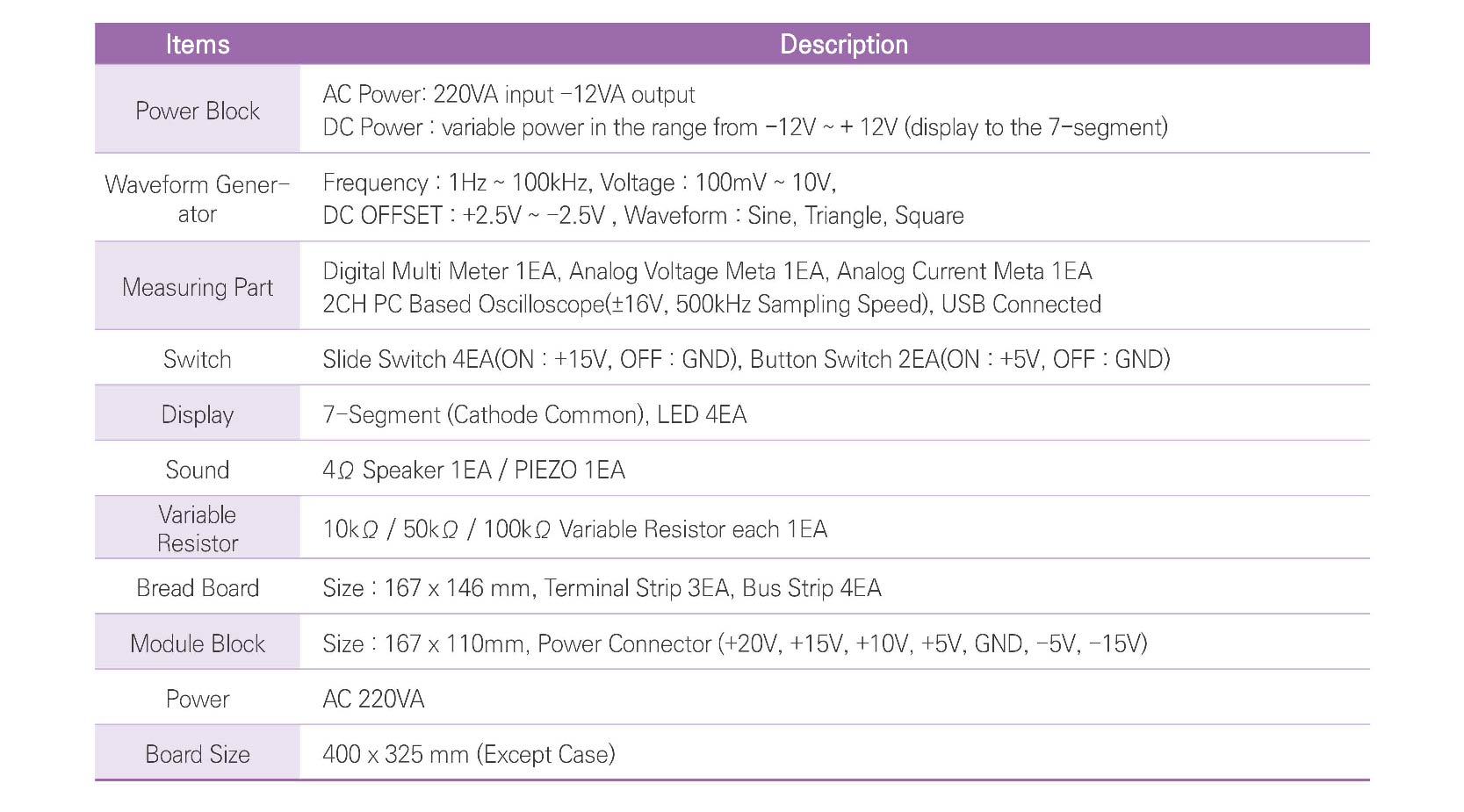

Hardware Specifications

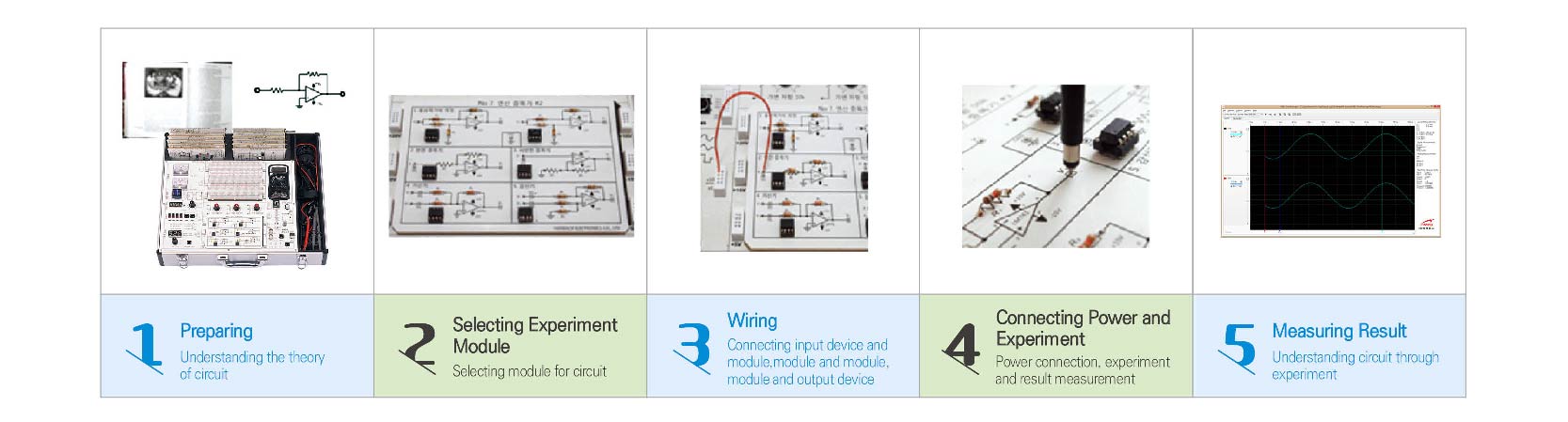

Experiment Procedure (Example)

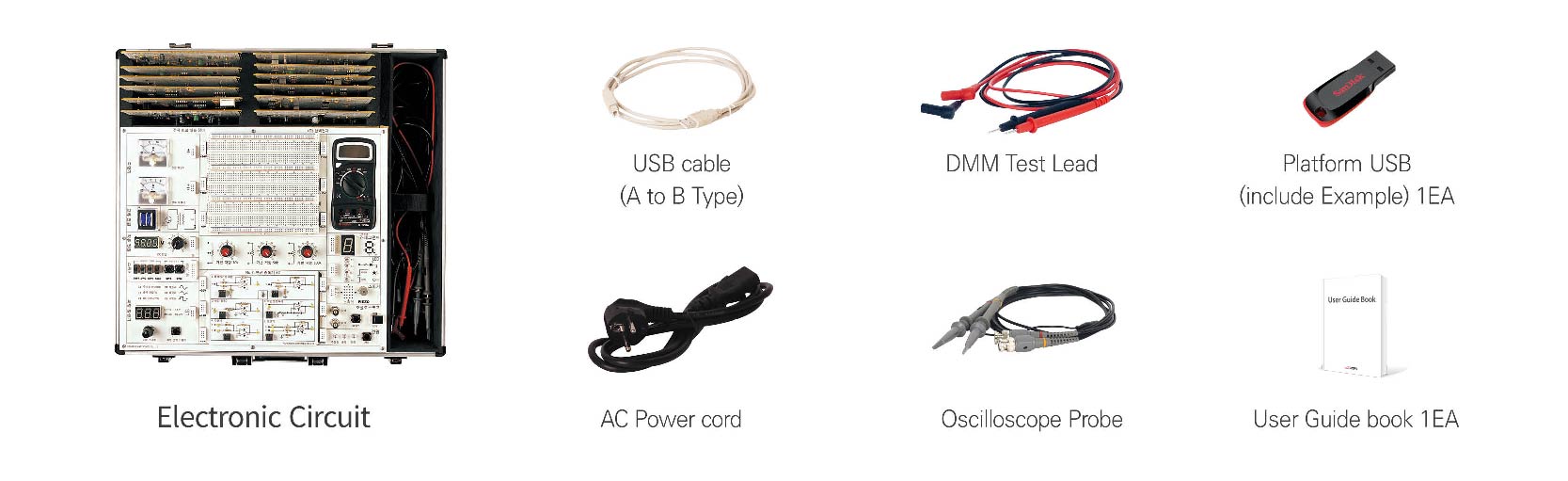

Product Configuration
