HBE-Sensor Multi

Sensor principle / application lab equipment

  • Supports multiform MCU of independent module structure
  • Supports CPLD module for digital circuit experiment
  • Functional modularity of application
  • Provides analysis and measurement module for improving the efficiency of MCU learning
  • Supports various interfaces for signal connections between MCU and module
  • Offers measurement point for signal analysis
  • Provides multiform program experiments for the basis and project experiments

Features

  • Basically loaded with 8 bit MCU (ATmega128) for practicing various sensors application.
  • Provide maximum expandability into various optional sensors from basic sensor through changeable module configuration.
  • Possible to practice various microprocessor programming through sensors application.
  • Possible to configure sensor modules according to necessary application.
  • Provide various input switches and output display devices.
  • Possible application modules for education of USN and sensors.
  • Provide various exemplary programs necessary for application practice.
    Designed suitably for sensor application by obtaining digitalized output every sensor module.
  • Capable of being used as an applicable sensor module of imbedded, UCN, MCU etc for maximizing product utility.
  • Possible to practice various projects by providing the interface co-operating with each module of HBE MCU-Multi.

Configuration and Names

1. Proximity Sensor A
2. Proximity Sensor B
3. Proximity Sensor C
4. Gas Sensor
5. Optical Sensor A
6. Optical Sensor B
7. Thermo Sensor A
8. Thermo Sensor B
9. Displacement Sensor
10. Motion Sensor
11. Magnetic Sensor A
12. Magnetic Sensor B
13. Pressure Sensor
14. Extended Board Connector
15. MCU

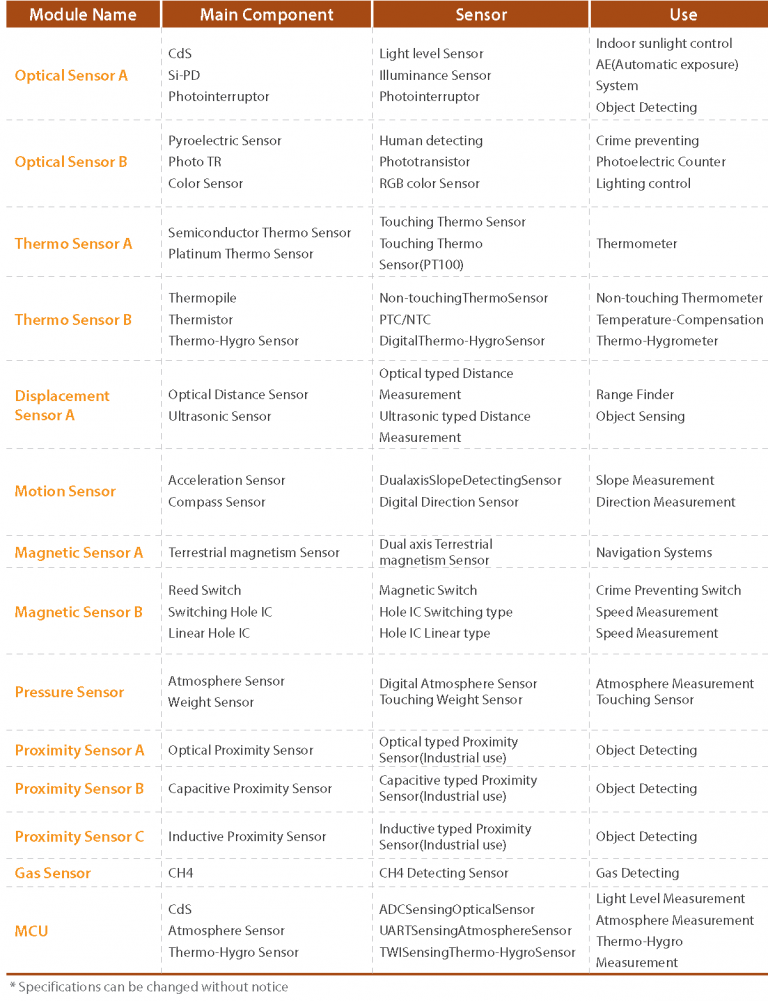

Hardware Specifications

Application Software

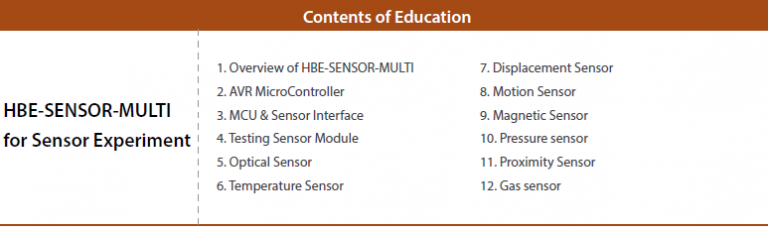

Training Contents
